Filling and packaging usually take place near the end of food and beverage production, after the product has completed the required processing steps and is ready for filling. The required filling and packaging equipment depends on the type of package:

  • Bag-in-Box (BIB) aseptic fillers automatically fill and seal sterilized juice concentrates, wine, dairy products, sauces, and similar products in multilayer aseptic bags.
  • PET blow molding machines heat PET preforms with infrared heaters, stretch them, and shape them into beverage bottles of different sizes using high-pressure air.
  • Blow-fill-cap combi-blocks convert PET preforms into bottles, filling them and putting the caps on all in a single operation. Robots and conveyors transport each bottle directly from the blow-moulding station to the sections where it is filled and capped, so the bottle has less contact with the surrounding environment (which reduces the risk of secondary contamination) and requires less manual handling.
    1. BIB Aseptic Filling Machine

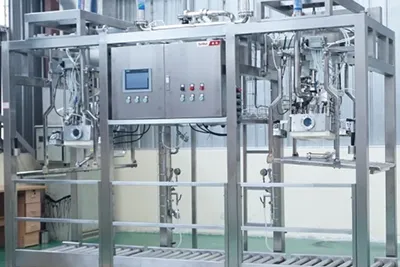

    2. BIB Aseptic Filling Machine Bag-in-Box (BIB) aseptic filling machines fill a sterile inner bag placed inside an outer carton. Once the bag spout enters the filling head, steam sterilizes it again before filling begins. The filler uses either a flow meter or load cells to measure the required quantity, then seals and discharges the filled bag. View details
    1. Blow Molding Machine

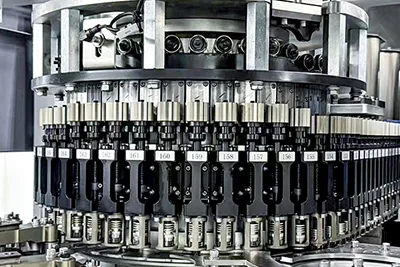

    2. Blow Molding Machine Blow molding machines turn PET preforms into finished bottles before they move to the filling stage. Each preform goes through various processing stages, including controlled heat first, then it enters a mold and stretches to the required length while high-pressure air expands the PET against the mold walls to create the final bottle shape. View details
    1. Blow Fill Cap Combi-block

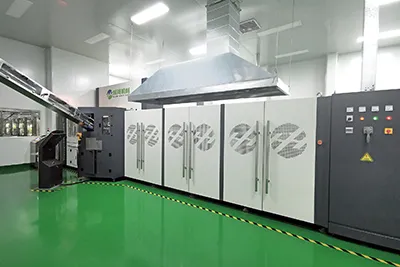

    2. Blow Fill Cap Combi-block Blow-fill-cap combi-blocks integrate PET bottle blowing, liquid filling, and capping in one continuous unit. The process starts with PET preforms, which can receive VHP sterilization before they enter the blowing section and are formed into bottles inside a closed aseptic area. View details
Shanghai Joy is a supplier of stainless steel processing equipment and engineering project services for the global food industry. The scope covers processing lines from raw material pretreatment and filling to secondary packaging, as well as individual equipment including stainless steel tanks, sterilizers, concentration units and filling machines.
