Concentrate and Deaeration Machines

Concentration and deaeration are common processes in liquid food production and are often used together. Concentration removes part of the water from the liquid, which raises the final solids content and reduces the product’s volume and weight, making storage and transportation easier. Deaeration removes dissolved gases, mainly oxygen, under vacuum; the lower pressure allows the liquid to release these gases at a lower temperature. Depending on the process, the product can be concentrated first and deaerated afterward, or deaeration can take place during concentration. Since concentration controls how much water remains in the product and deaeration removes dissolved oxygen, both processes affect the final concentration, flavor, color, stability, and shelf life.

Our range of concentration and deaeration machines include falling film evaporators and forced-circulation concentrators for water removal and concentration, together with vacuum deaerators for dissolved-gas removal.
    1. Vacuum Deaerator

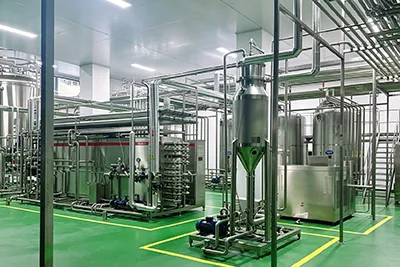

    2. Vacuum Deaerator Vacuum deaerators remove unwanted gases, such as oxygen, out of liquid products before the next processing stage. They work by lowering the pressure inside a closed tank, which makes dissolved gases easier to release from the liquid. The vacuum deaerator mainly consists of a deaeration tank, vacuum pump, and centrifugal pump, all made with food-grade stainless steel and silicone rubber seals. View details
    1. Falling Film Evaporator

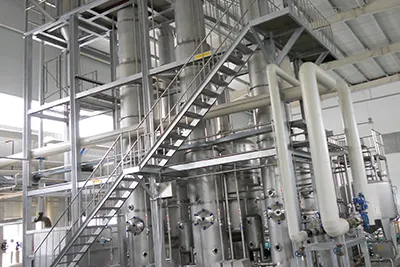

    2. Falling Film Evaporator Falling film evaporators concentrate liquid products by removing part of their water at a relatively low temperature. The liquid enters from the top and spreads over the inside of the heat-exchange tubes as a thin film, then flows downward under gravity. Since the film is thin and moves quickly, heat reaches the liquid efficiently without keeping it hot for a long time. View details
    1. Forced Circulation Evaporator

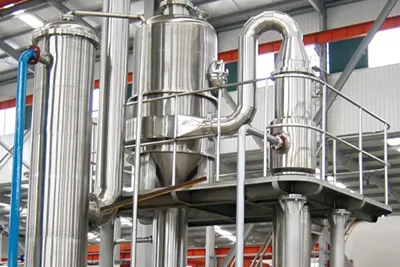

    2. Forced Circulation Evaporator Forced circulation evaporators use a circulation pump to move the product at high speed through the heating tubes, which is suitable for thick liquids and products that contain insoluble solids. The liquid heats as it passes through the tubes, then enters the separator, where evaporation takes place and the vapor separates from the liquid. View details
Shanghai Joy is a supplier of stainless steel processing equipment and engineering project services for the global food industry. The scope covers processing lines from raw material pretreatment and filling to secondary packaging, as well as individual equipment including stainless steel tanks, sterilizers, concentration units and filling machines.
